10.4 inch bar type TFT display module 1024x100 dots 51pins RGB interface 450c/d

Name: 104 inch bar type TFT display module 1024x100 dots 51pins RGB interface 450cd
Brand: HuaXin
Price: 49.3 USD

China 10.4 inch bar type TFT display module 1024x100 dots 51pins RGB interface 450c/d wholesale

Brand Name : HuaXin

Model Number : ESHX100T104N002B

Certification : ISO14001/ ISO9001/IATF16949

Place of Origin : China

MOQ : 500

Price : $49.3

Payment Terms : T/T

Supply Ability : 500K pcs per month

Delivery Time : 4~6weeks

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Display Technology : display lcd tft

name : bar type TFT

size : 10.4 inch

resolution : 1024x100

Brightness : 450c/d

Interface : RGB(24 bit)

Driving IC : HX8282-A*1、HX8678-C*1

Contact Now

10.4 Inch Bar Type TFT Display Module

Key Specifications

Part NO.	ESHX100T104N002B
Display Type	10.4 inch tft display
Resolution	1024x100
Panel Size(mm)	288.9x41.5
Active Area (mm)	264x25.8
View direction	ALL
interface	RGB(24 bit)
Brightness	450c/d
driving IC	HX8282-A1,HX8678-C1

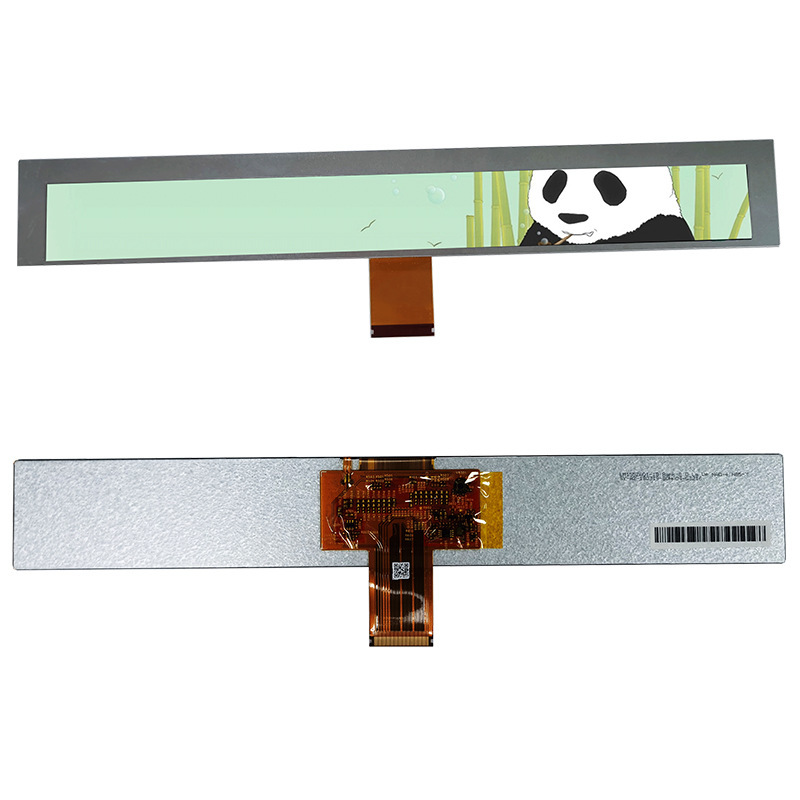

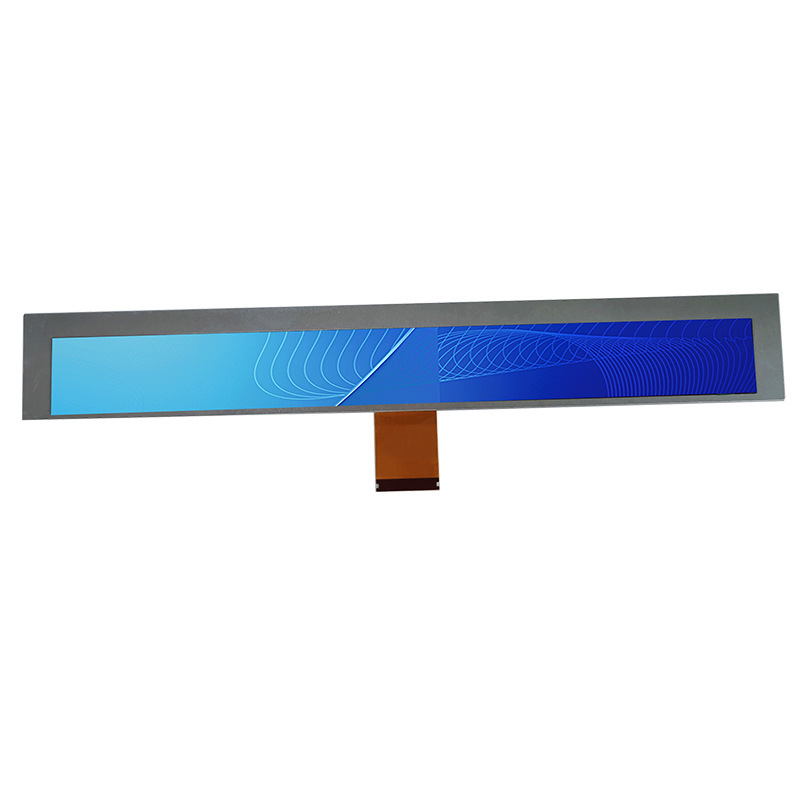

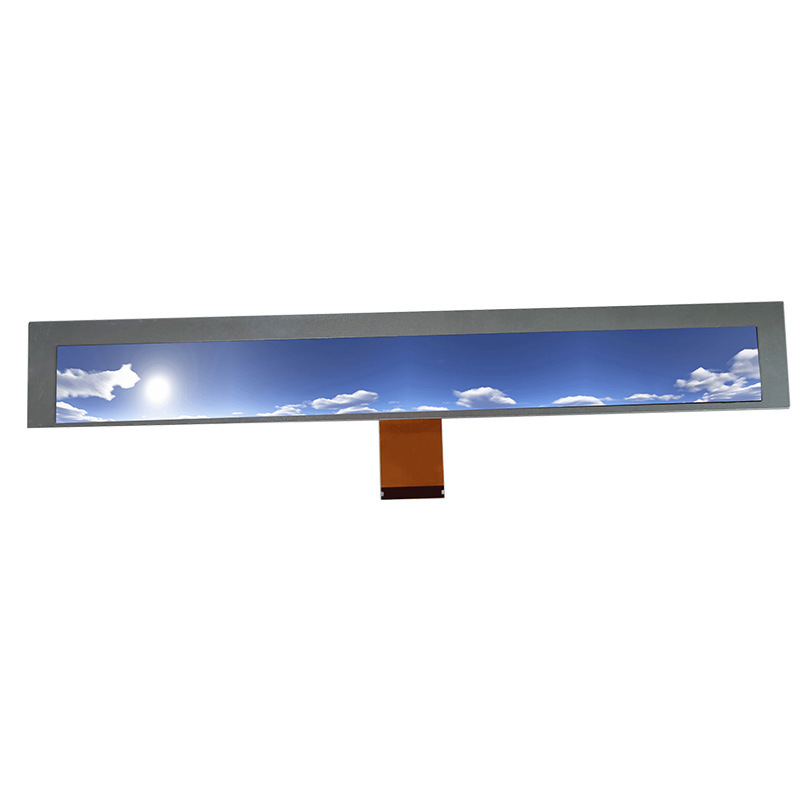

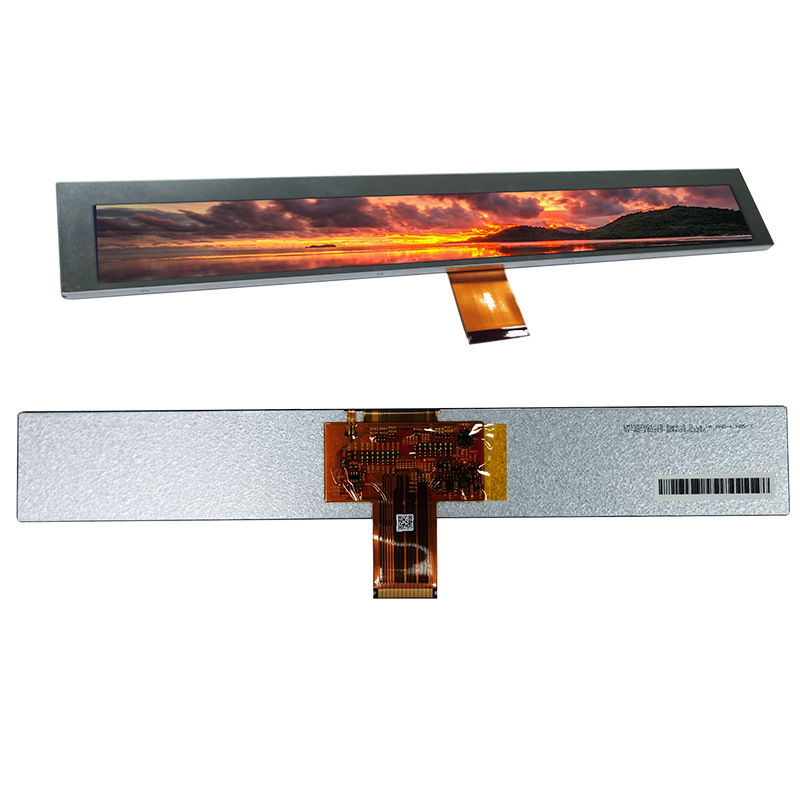

Product Images

10.4 inch bar type TFT display module 1024x100 dots 51pins RGB interface 450c/d

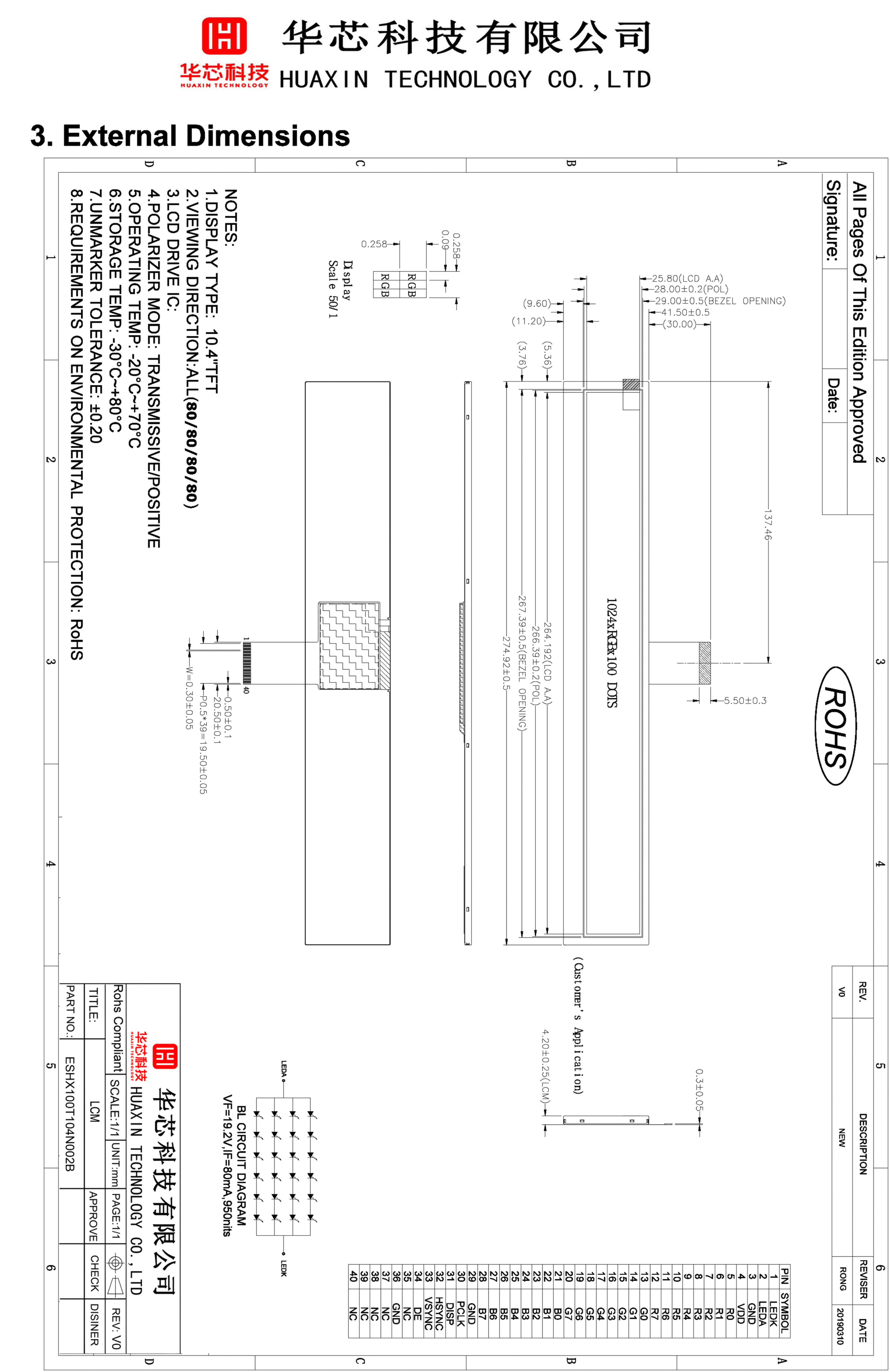

Technical Drawings

10.4 inch bar type TFT display module 1024x100 dots 51pins RGB interface 450c/d

TFT Production Process

Manufacturer Advantages

Cost-effective inland factory location
Advanced equipment ensuring stable quality
Highly automated processes for efficiency
Experienced engineering team with 20+ years in LCD field
Custom design capabilities

Certifications: ISO14001, ISO9001, IATF16949, SGS

Company: Huaxin Technology (Enshi) Co., LTD
Location: Hubei, Enshi
Founded: 2009
Specialization: R&D, production and sales of LCD, LCM, TFT, backlight, OLED
Staff: 500+ employees (10% R&D, 15% QC)
Capital: 20 million RMB

Production Capacity

Product Type	2021	2022	2023	2024	2025
LCD (Thousands/Day)	4.5	9	9	9	9
LCM (Thousands/Day)	70	150	300	450	450
Backlight (Thousands/Day)	100	200	300	500	500
OLED (Thousands/Day)	10	20	30	40	50

Applications

Car navigation systems & printers
Video communication & advertising displays
Automotive & medical devices
Fitness equipment & handheld devices
Industrial control systems & home appliances

TFT Display Advantages

High image quality with excellent resolution and color accuracy
Fast response times for smooth motion display
Wide viewing angles with minimal color shift
Energy efficient operation
Flexible sizing options for various applications
LED backlighting for consistent illumination

TFT Display Considerations

Viewing angles may be limited compared to some technologies
Contrast ratios may be lower than alternative solutions
Backlighting increases power consumption
Potential for motion blur in fast-moving content
Limited flexibility in physical form factors
Color gamut may be narrower than some alternatives
