4.5 Inch FHD TFT Display High resolution Tft Display 1920x1080 Dots 50pins LVDS Interface 1200C/D

Name: 45 Inch FHD TFT Display High resolution Tft Display 1920x1080 Dots 50pins LVDS Interface 1200CD
Brand: HuaXin
Price: 26.2 USD

China 4.5 Inch FHD TFT Display High resolution Tft Display 1920x1080 Dots 50pins LVDS Interface 1200C/D wholesale

Brand Name : HuaXin

Model Number : ESHX043PIFHD001-01A

Certification : ISO14001/ ISO9001/IATF16949

Place of Origin : China

MOQ : 1000

Price : $26.2

Payment Terms : T/T

Supply Ability : 500K pcs per month

Delivery Time : 4~6weeks

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Display Technology : FHD tft

Name : high resolution display

Display size : 4.5 inch TFT display

Resolution : 1920x1080

interface : 50pins LVDS

Brightness : 1200c/d

view angle : all

Contact Now

4.5 Inch High Resolution High BrightnesResolution TFT Display

1920x1080 resolution 50pins LVDS interface with 1200 cd/m² brightness and wide viewing angle.

Technical Parameters

Part NO.	HX045UXS91C
Panel size	4.5 inch TFT display module
Resolution	1920x1080
Viewing Angle	all
Operation Temperature	-20~70
storage temperature	-30~80
Panel Size(mm)	115.3x77.02x4.48
Active Area (mm)	99.29x56.2
Brightness(cd/m2)	1200c/d
Interface	50pins LVDS
touch panel	CTP

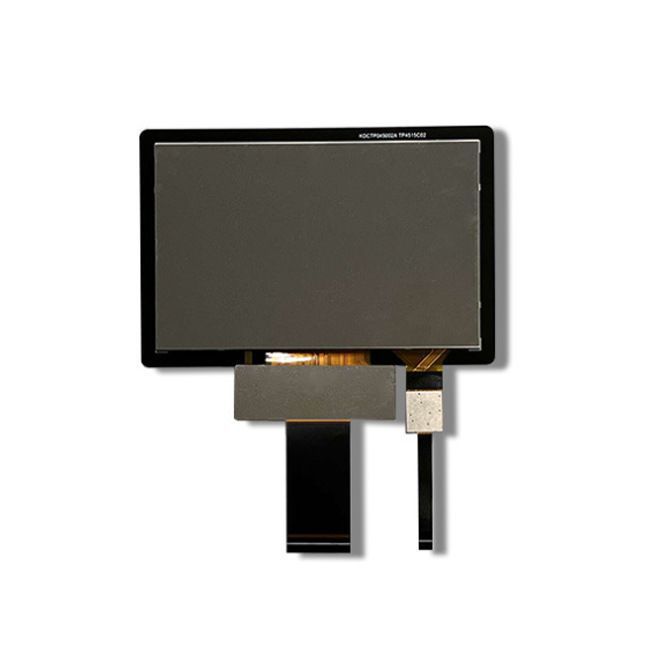

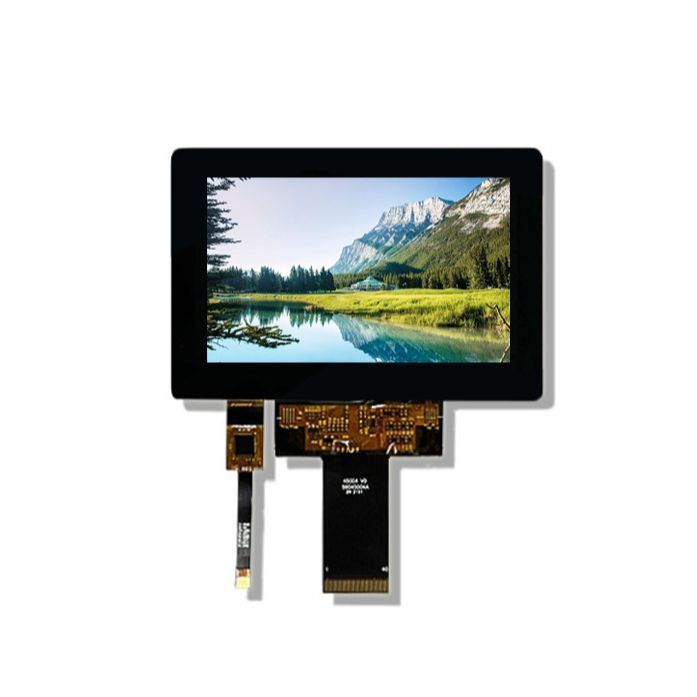

Product Images

4.5 Inch FHD TFT Display High resolution Tft Display 1920x1080 Dots 50pins LVDS Interface 1200C/D

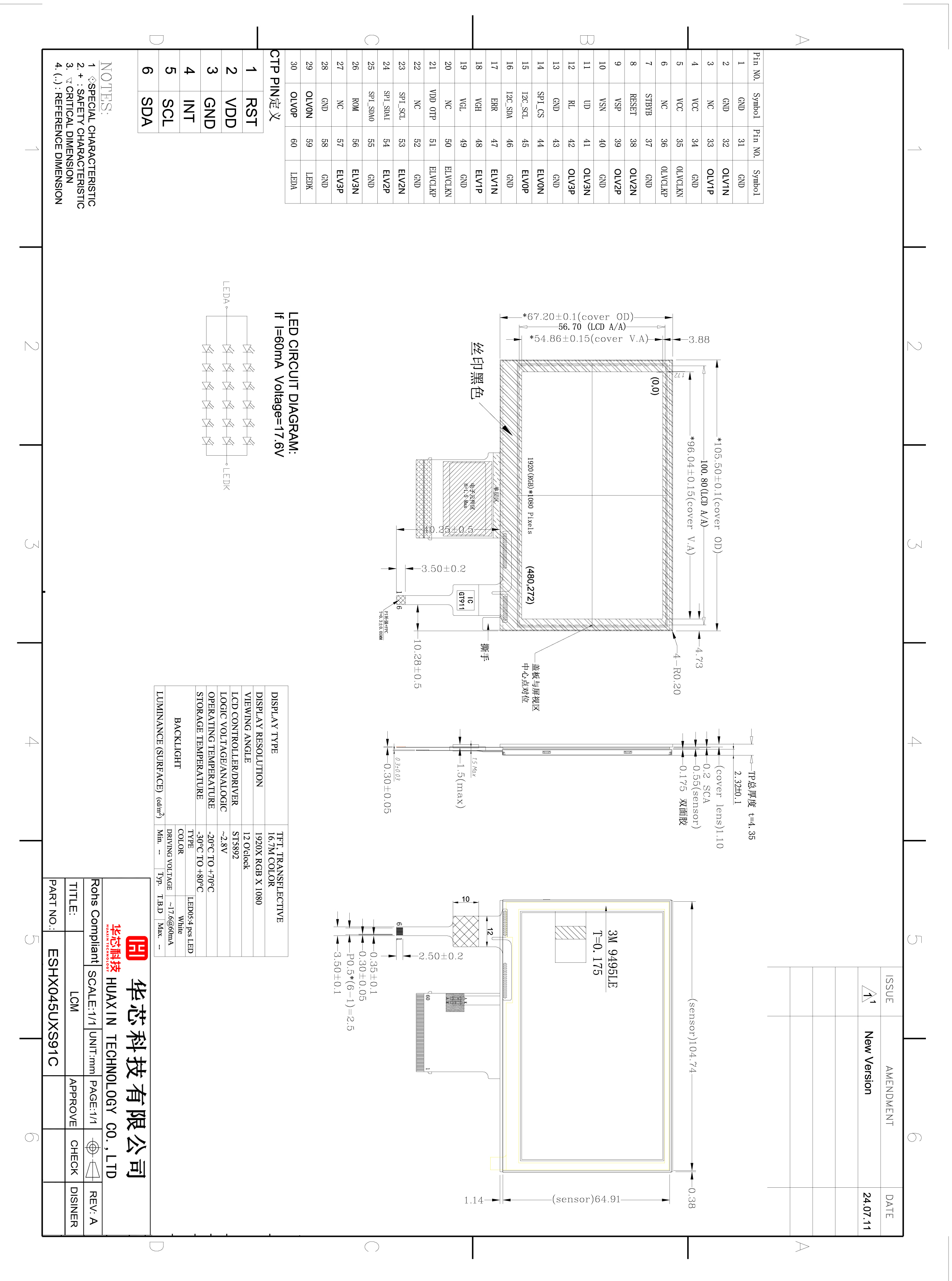

Technical drawing

4.5 Inch FHD TFT Display High resolution Tft Display 1920x1080 Dots 50pins LVDS Interface 1200C/D

TFT Technology Overview

Manufacturer Advantages

Cost-effective inland factory location
Advanced equipment for stable quality
Automated processes for efficiency
20+ years of LCD industry experience
Custom design capabilities

Certifications

ISO14001
ISO9001/IATF16949
SGS certified LCD modules

Company Profile

Huaxin Technology (Enshi) Co., LTD - Founded 2009 in Hubei, China

Specializes in LCD, LCM, TFT, backlight, and OLED technologies
500+ employees with 10% R&D and 15% QC staff
Registered capital: 20 million

TFT Display Characteristics

High resolution and color accuracy
Fast response times
Wide viewing angles
Energy efficient operation
Versatile size options
LED backlight system

Common Applications

Car navigation systems and printers
Video communication and digital signage
Medical and automotive devices
Fitness equipment and handheld devices
Industrial controls and home appliances

Considerations

Viewing angle limitations in some models
Contrast ratio constraints
Backlight power requirements
Potential motion blur in fast-moving content
Fixed panel structure
