Home > Serial Port Screen >

5 Inch Spi Tft Touch Screen Spi Touch Display 800X480 Driving IC ST7262 400c/D

Product Categories

HuaXin Technology CO.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

5 Inch Spi Tft Touch Screen Spi Touch Display 800X480 Driving IC ST7262 400c/D

Name: 5 Inch Spi Tft Touch Screen Spi Touch Display 800X480 Driving IC ST7262 400cD
Brand: HuaXin
Price: 15.35 USD

China 5 Inch Spi Tft Touch Screen Spi Touch Display 800X480 Driving IC ST7262 400c/D wholesale

Brand Name : HuaXin

Model Number : ESHX050005-PB-MS01

Certification : ISO14001/ ISO9001/IATF16949

Place of Origin : China

MOQ : 1000

Price : $15.35

Payment Terms : T/T

Supply Ability : 500K pcs per month

Delivery Time : 4~6weeks

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Display Technology : tft panel

name : TFT module

size : 5 inch

resolution : 800X480

Brightness : 400c/d

Interface : SPI

Driving IC : ST7262

Contact Now

5 Inch TFT Display Module with PCB - 800×480 SPI Interface (ST7262 IC)

Product Specifications

Attribute	Value
Part Number	ESHX050005-PB-MS01
Display Technology	TFT Panel
Size	5 inch
Resolution	800×480 dots
Brightness	400 cd/m²
Interface	SPI
Driving IC	ST7262
View Angle	All directions

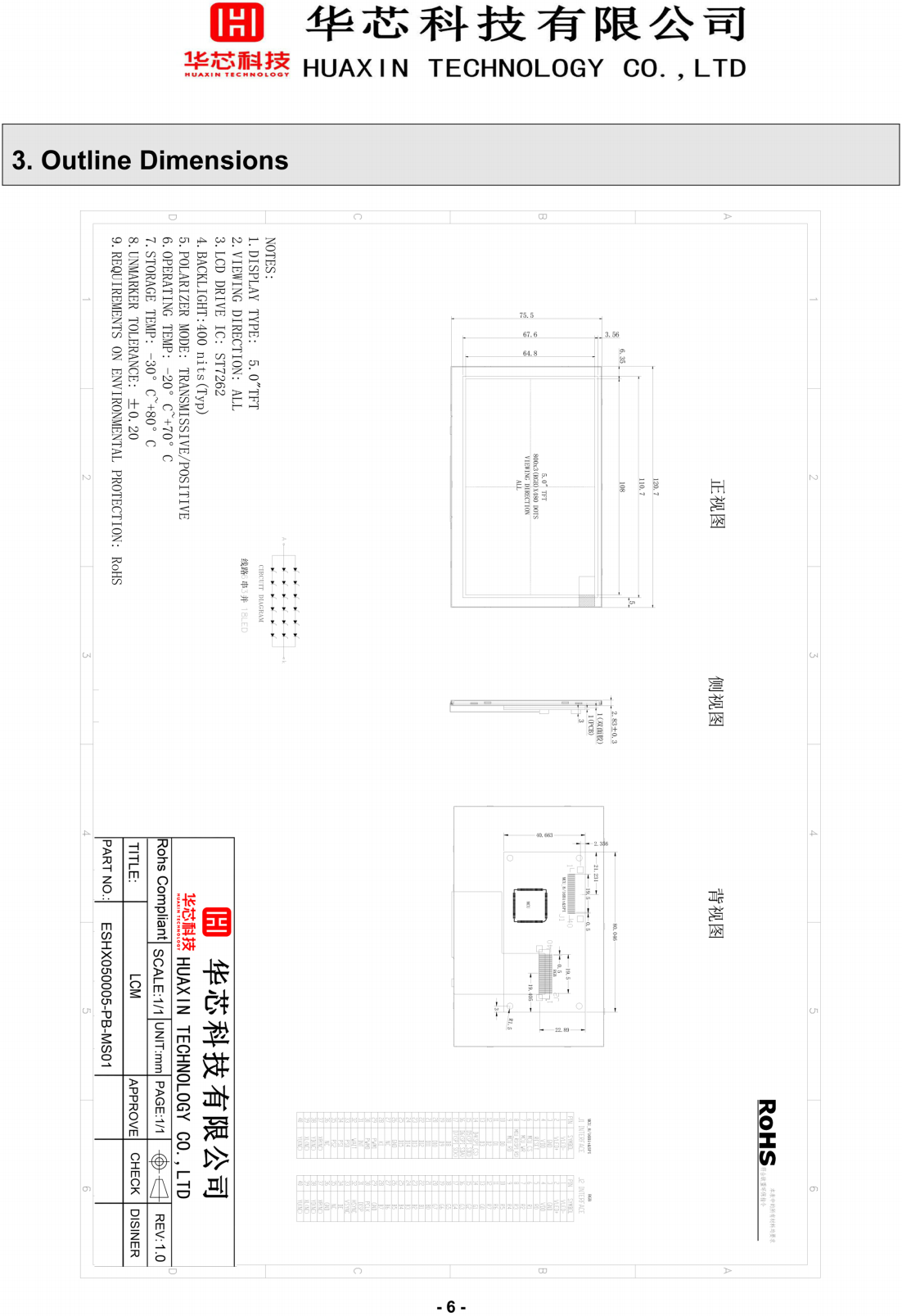

Outline Dimensions	120.70(W) × 75.50(H) × 6.83 mm
Active Area	108.0 × 64.80 mm

Product Images

5 Inch Spi Tft Touch Screen Spi Touch Display 800X480 Driving IC ST7262 400c/D

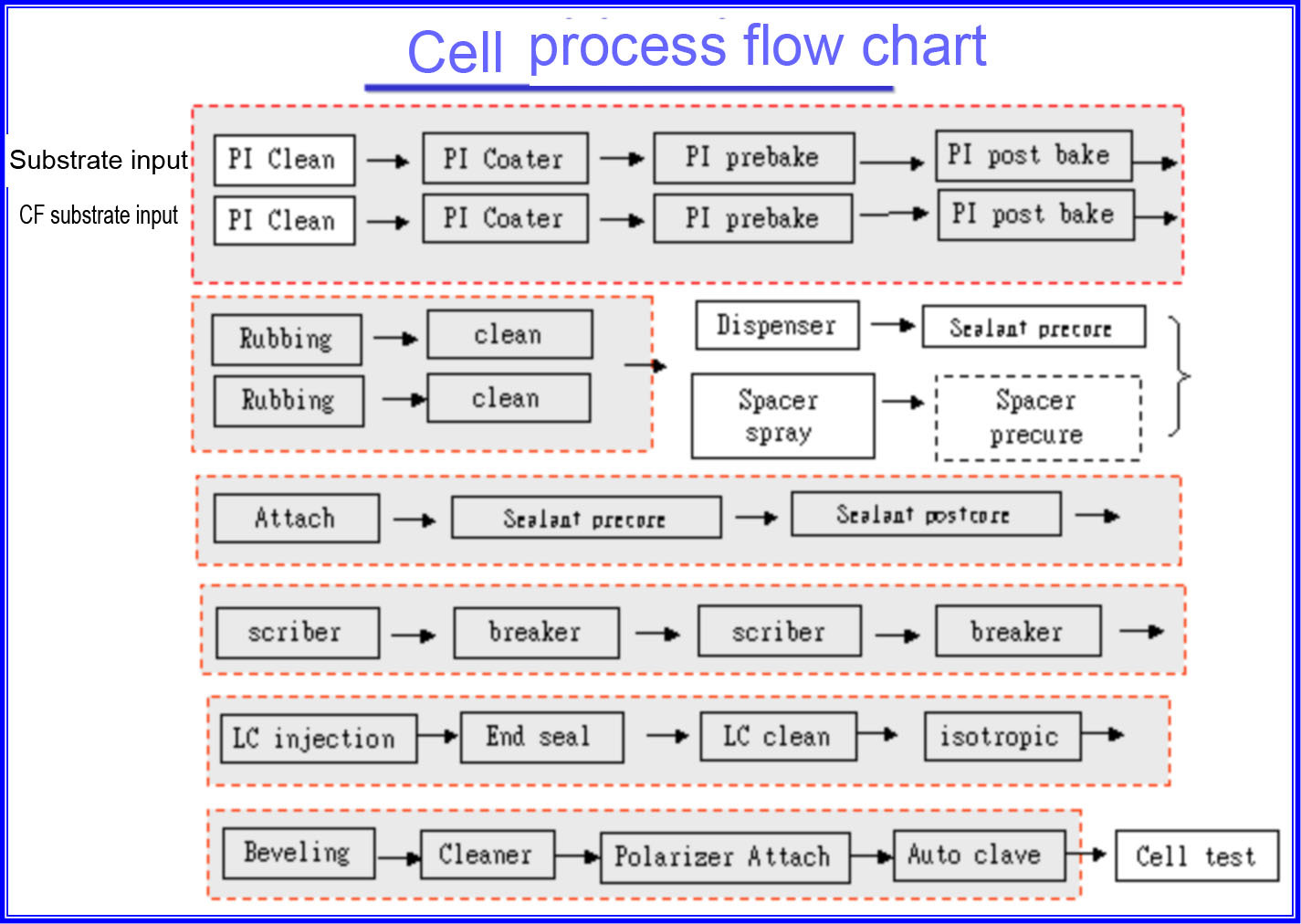

Technical Diagrams

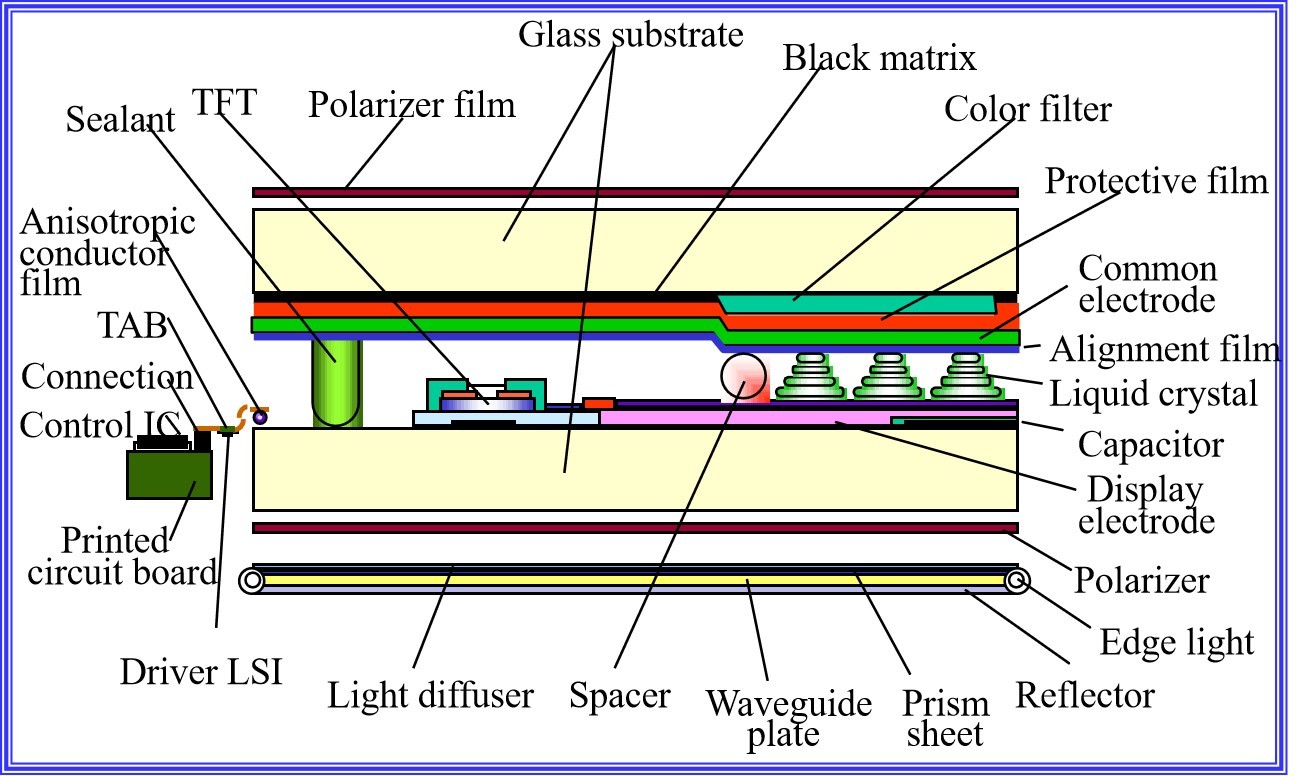

TFT Technology Overview

Key Advantages of TFT Displays

Excellent image quality with high resolution and color accuracy
Fast response times for smooth motion display
Wide viewing angles with minimal color shift
Energy efficient compared to other display technologies
Available in various sizes for diverse applications
LED backlighting for consistent illumination

Considerations for TFT Displays

Viewing angles may be limited compared to some newer technologies
Contrast ratio may be lower than alternative display types
Backlighting increases power consumption
Potential for motion blur in fast-moving content
Limited flexibility in physical form factor
Color gamut may be narrower than some alternatives

Applications

Car navigation systems and printers
Video communication and digital advertising
Automotive displays and medical devices
Fitness equipment and handheld devices
Industrial control systems and home appliances

Manufacturer Information

Huaxin Technology (Enshi) Co., LTD

Founded in 2009 in Hubei, Enshi

High-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED technologies

Product Capabilities

LCD: VA, TN, HTN, STN, FSTN, CSTN series
LCM: COB, TBA, COG, TP, LED backlight series

Company Statistics

Registered capital: 20 million
Current staff: 500+ employees
R&D team: 10% of workforce
Quality control: 15% of workforce

Certifications

ISO14001
ISO9001/IATF16949
SGS certification for LCD modules

Production Capacity

Product Type	2021	2022 Goal	2023 Goal	2024 Goal	2025 Goal
LCD (Thousands/Day)	4.5	9	9	9	9
LCM (Thousands/Day)	70	150	300	450	450
Backlight (Thousands/Day)	100	200	300	500	500
OLED (Thousands/Day)	10	20	30	40	50
