1.45 Inch Oled Touch Screen Module 272X340 24PINS MIPI Interface Driving IC RM67160

Name: 145 Inch Oled Touch Screen Module 272X340 24PINS MIPI Interface Driving IC RM67160
Brand: HuaXin
Price: 7.3 USD

China 1.45 Inch Oled Touch Screen Module 272X340 24PINS MIPI Interface Driving IC RM67160 wholesale

Brand Name : HuaXin

Model Number : HX145RAC10B

Certification : ISO14001/ ISO9001/IATF16949

Place of Origin : China

MOQ : 1000

Price : $7.3

Payment Terms : T/T

Supply Ability : 500K pcs per month

Delivery Time : 4~6weeks

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Display Technology : amoled touch screen

Size : 1.45 inch

Name : display amoled

Resolution : 272X340

interface : 24pins Mipi

View angle : all

Brightness : 350C/D

touch panel : CTP

Contact Now

1.45 Inch AMOLED Touch Display with MIPI Interface (272×340 Resolution)

Product Specifications

Attribute	Value
Display Technology	AMOLED touch screen
Size	1.45 inch
Resolution	272×340 dots
Interface	24pins MIPI
View Angle	All directions
Brightness	350 cd/m²
Touch Panel	CTP (Capacitive Touch Panel)

Technical Parameters

Part Number	HX145RAC10B
Display Technology	AMOLED
Diagonal Screen Size	1.45 inch OLED
Active Area	23.01×28.77 mm
Panel Size	26.01×33.77×0.833 mm
Operation Temperature	-20℃ to +70℃
Contrast Ratio	10000:1
Driving IC	RM67160, FT3207

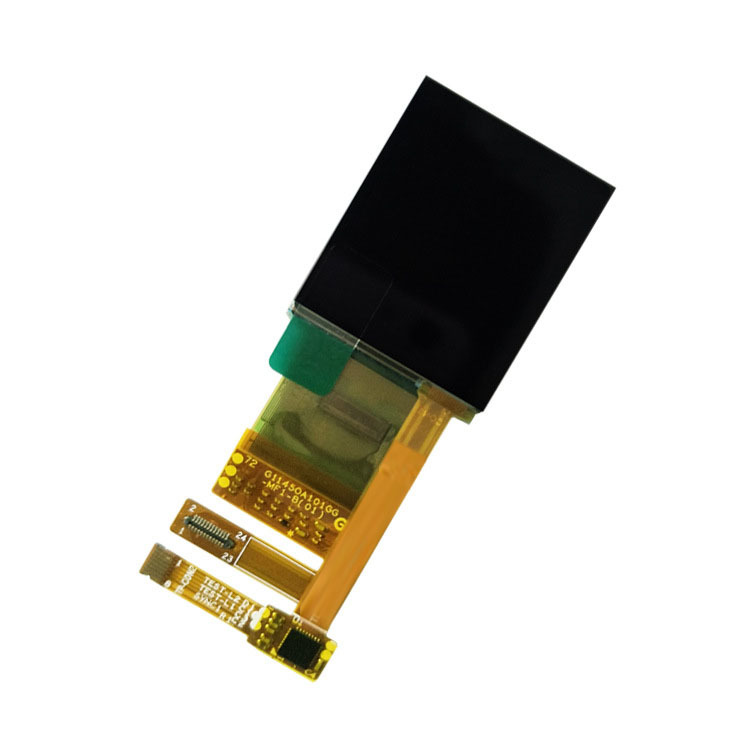

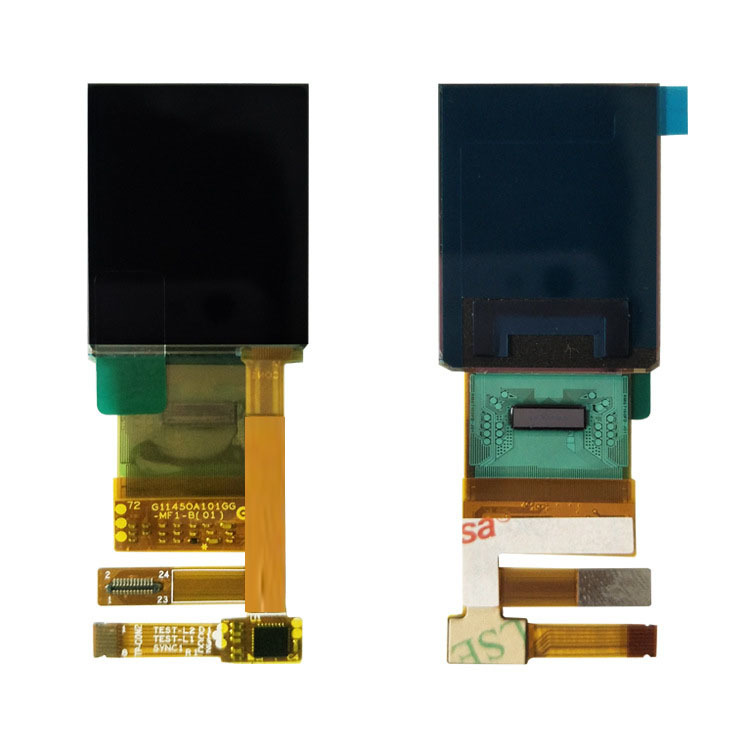

Product Images

1.45 Inch Oled Touch Screen Module 272X340 24PINS MIPI Interface Driving IC RM67160

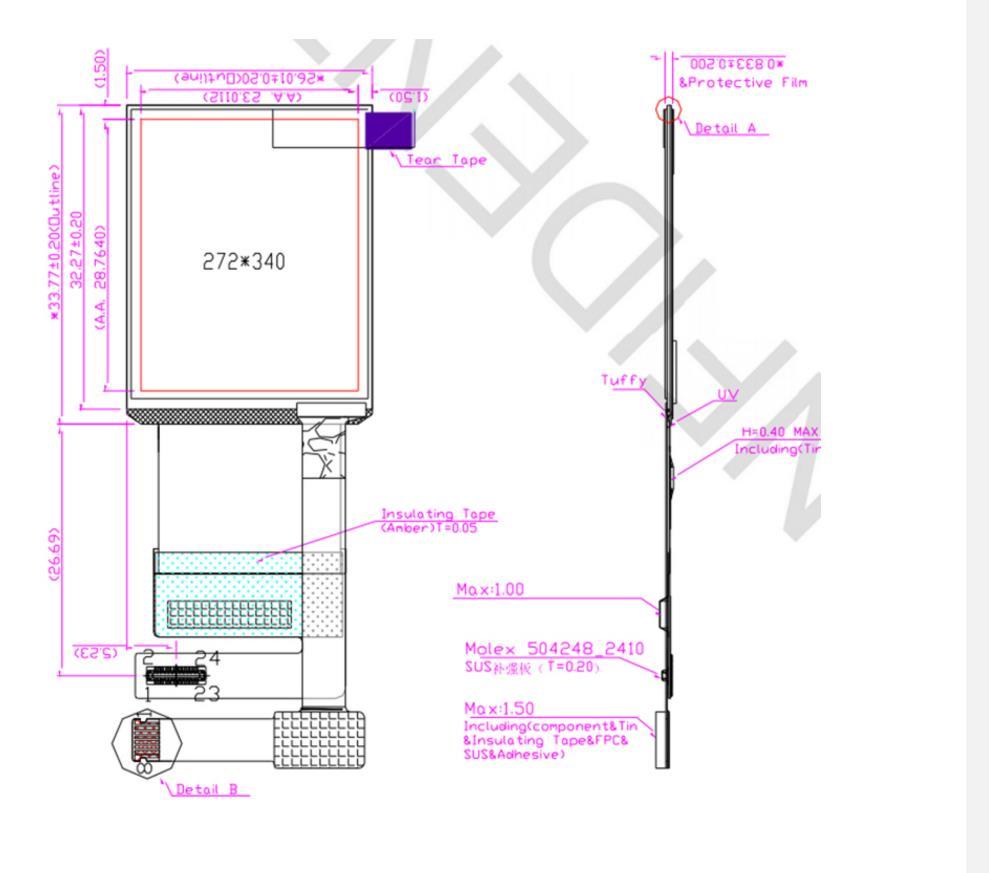

Technical Drawings

AMOLED Technology Overview

Key Advantages

Perfect Blacks & Infinite Contrast
Vibrant Colors & Wide Gamut
Ultra-Fast Response Times
Flexibility & Thin Designs
Energy Efficiency
Always-On Display Capability
Superior Viewing Angles
Excellent HDR Performance

Limitations

Higher cost compared to LCD and TFT technologies
Shorter operational lifetime than LCD/TFT
Lower peak brightness in sustained use

Manufacturer Advantages

Cost-effective inland manufacturing base
Advanced equipment for stable quality
Automated processes for efficiency and consistency
20+ years of engineering expertise in LCD technology
Custom design capabilities

Certifications

ISO14001
ISO9001/IATF16949
SGS certified LCD modules

Huaxin Technology (Enshi) Co., LTD

Location: Hubei, Enshi
Established: 2009
Specialization: R&D, production and sales of LCD, LCM, TFT, backlight, and OLED
Product range: VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP, LED backlight modules
Registered capital: 20 million
Workforce: 500+ employees
R&D team: 10% of workforce
Quality control: 15% of workforce

Production Capacity

Product Type	2021	2022	2023	2024	2025	Unit
LCD Production	4.5	9	9	9	9	Thousands/Day
LCM Production	70	150	300	450	450	Thousands/Day
Backlight Production	100	200	300	500	500	Thousands/Day
OLED Production	10	20	30	40	50	Thousands/Day

Typical Applications

Smartphones and tablets
Wearable devices (smartwatches)
AR/VR headsets
Television and monitors
Automotive displays
Medical equipment and smart home devices

Power Efficiency Comparison

AMOLED vs. LCD/LED Technologies

Power Consumption: AMOLED consumes power per pixel (dark pixels use minimal power), while LCD requires constant backlight
Content Dependency: AMOLED is more efficient for dark content as pixels can turn off completely
Brightness Control: AMOLED can adjust brightness per pixel for better efficiency in low-light conditions
Display Size: AMOLED is more efficient for smaller displays as power scales with pixel count
